基于Docker部署ZeroTier(PG存储)

1、下载ztnet官方docker-compose配置，并进行更改

https://ztnet.network/installation/docker-compose
https://liuzhicong.cn/index.php/guide/78.html

2、手动定义docker网络

docker network create zerotier_net --driver=bridge --subnet=10.254.1.0/24
docker network list

3、zerotier与ztnet与postgres一起部署

docker-compose.yaml的具体配置如下：
services:
  zerotier:
      image: zyclonite/zerotier:1.14.0
      hostname: zerotiercd
      container_name: zerotier
      restart: unless-stopped
      volumes:
        - ./data/zerotier:/var/lib/zerotier-one
      cap_add:
        - NET_ADMIN
        - SYS_ADMIN
      devices:
        - /dev/net/tun:/dev/net/tun
      ports:
        - "9993:9993" #对外提供http的api使用
        - "9993:9993/udp"
      environment:
        - ZT_OVERRIDE_LOCAL_CONF=true
        - ZT_ALLOW_MANAGEMENT_FROM=0.0.0.0/0 # 限制管理controller的子网，为了更安全可以填写上面创建的 10.254.1.0/24

  ztnet:
    image: sinamics/ztnet:latest
    container_name: ztnet
    working_dir: /app
    volumes:
      - ./data/zerotier:/var/lib/zerotier-one
    restart: unless-stopped
    ports:
      - 3000:3000 # 管理端界面，不建议对外放开该管理界面，尽量使用vpn进行管理
    environment:
      POSTGRES_HOST: postgres
      POSTGRES_PORT: 5432
      POSTGRES_USER: ztnet
      POSTGRES_PASSWORD: Ztnet@2025.
      POSTGRES_DB: ztnet
      NEXTAUTH_URL: "http://192.168.58.18:3000" # 这里填写外网控制，如果经过反向代理，则填写域名，如果没有，则填写http://ip:3000
      NEXTAUTH_SECRET: "random_secret"
      NEXTAUTH_URL_INTERNAL: "http://ztnet:3000"

  postgres:
    image: postgres:15.2-alpine
    container_name: postgres
    restart: unless-stopped
    environment:
      - TZ=Asia/Shanghai
      - POSTGRES_PASSWORD=xxxxxxxx
      - POSTGRES_USER=postgres
    volumes:
      - ./data/postgresql:/var/lib/postgresql/data

networks:
  default:
    name: zerotier_net
    external: true

4、使用外部已经存在postgresql

（1）创建数据库

我这里使用的是与其他项目共用一个基于docker容器部署的postgresql为例：

#创建用户
docker exec -it postgres psql -U postgres -c "create user ztnet with password 'Ztnet@2025.'"

#删除数据库
docker exec -it postgres psql -U postgres -c "drop database ztnet"
#创建数据库ztnet
docker exec -it postgres psql -U postgres -c "create database ztnet with encoding='utf-8' owner=ztnet"

#查看所有数据库
docker exec -it postgres psql -U postgres -c "\l"
#查看指定数据库中的所有表
docker exec -it postgres psql -U postgres -d ztnet -c "\dt"

#删除数据库ztnet下所有的表
docker exec -it postgres psql -U postgres -d ztnet -c "SELECT 'DROP TABLE IF EXISTS \"' || tablename || '\" CASCADE;' FROM pg_tables WHERE schemaname = 'public';"

（2）docker-compose配置

docker-compose.yaml的具体配置如下：
services:
  zerotier:
      image: zyclonite/zerotier:1.14.0
      hostname: zerotiercd
      container_name: zerotier
      restart: unless-stopped
      volumes:
        - ./data/zerotier:/var/lib/zerotier-one
      cap_add:
        - NET_ADMIN
        - SYS_ADMIN
      devices:
        - /dev/net/tun:/dev/net/tun
      ports:
        - "9993:9993"
        - "9993:9993/udp"
      environment:
        - ZT_OVERRIDE_LOCAL_CONF=true
        - ZT_ALLOW_MANAGEMENT_FROM=0.0.0.0/0

  ztnet:
    image: sinamics/ztnet:latest
    container_name: ztnet
    working_dir: /app
    volumes:
      - ./data/zerotier:/var/lib/zerotier-one
    restart: unless-stopped
    extra_hosts:
      - "host.docker.internal:host-gateway"
    ports:
      - 3000:3000
    environment:
      POSTGRES_HOST: host.docker.internal
      POSTGRES_PORT: 5432
      POSTGRES_USER: ztnet
      POSTGRES_PASSWORD: Ztnet@2025.
      POSTGRES_DB: ztnet
      NEXTAUTH_URL: "http://p2p.xxx.com"
      NEXTAUTH_SECRET: "random_secret"
      NEXTAUTH_URL_INTERNAL: "http://ztnet:3000"

networks:
  default:
    name: zerotier_net
    external: true

5、运行docker-compose

docker-compose -f zerotier-compose.yaml up -d

6、客户端使用

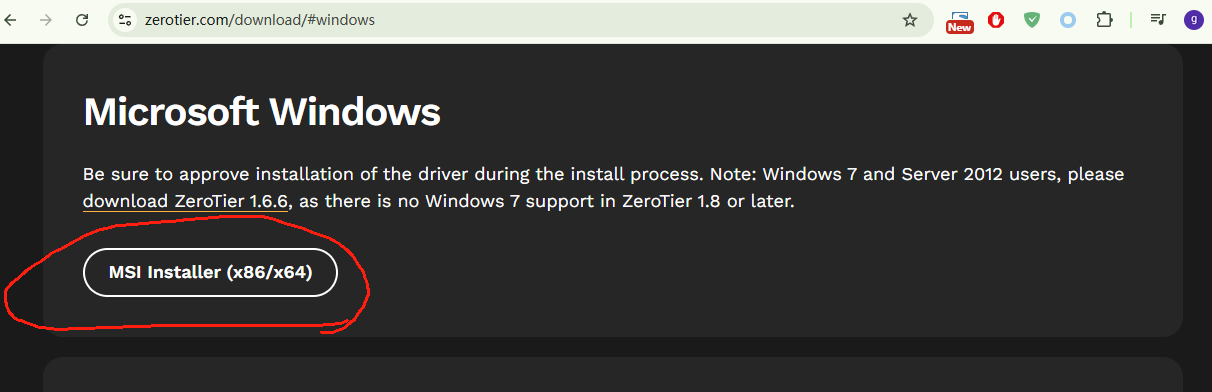

下载地址：https://www.zerotier.com/download/

安装后，需要确保ZeroTierOne的服务是启动的，尽量不要使用图形界面，需要使用命令行进行配置。执行下面的命令需要以【以管理员身份运行】command或者powershell。

#查看windows下的服务是否启动
sc query ZeroTierOneService

#如果不是Running状态，可以启动或重启
net start ZeroTierOneService

创建客户端配置文件

Windows客户端下：C:\ProgramData\ZeroTier\One\local.conf）

Linux客户端：/var/lib/zerotier/local.conf

{
  "settings": {
    "port": 0,
    "allowManagementFrom": ["127.0.0.1"],
    "controllerServer": "xxxxxxx:9993",
    "primaryPort": 0,
    "interfacePrefixBlacklist": []
  },
  "networks": {
    "3d939c887b574d50": {
      "authorized": true,
      "activeBridge": false
    }
  }
}

重启服务并加入创建的网络

net stop ZeroTierOneService && net start ZeroTierOneService

#加入网络
"C:\Program Files (x86)\ZeroTier\One\zerotier-cli.bat" join 6c9be40237396a64

#查看自己的信息（包括网络id）
"C:\Program Files (x86)\ZeroTier\One\zerotier-cli.bat" info

一些url的api

rlgv576b0o31wlke9cz7u6gk

curl -H "X-ZT1-Auth: rlgv576b0o31wlke9cz7u6gk" http://localhost:9993/status

//查看网络id为5e7a1f9226590243的成员
curl -H "X-ZT1-Auth: rlgv576b0o31wlke9cz7u6gk" \
  http://localhost:9993/controller/network/5e7a1f9226590243/member

//创建网络
curl -X POST -H "X-ZT1-Auth: rlgv576b0o31wlke9cz7u6gk" \
  -H "Content-Type: application/json" \
  -d '{"name":"tdjnet","private":false}' \
  http://localhost:9993/controller/network

//设置网络
curl -X POST -H "X-ZT1-Auth: rlgv576b0o31wlke9cz7u6gk" \
  -H "Content-Type: application/json" \
  -d '{
    "ipAssignmentPools": [
      {"ipRangeStart": "10.144.1.1", "ipRangeEnd": "10.144.1.254"}
    ],
    "routes": [
      {"target": "10.144.0.0/16", "via": null}
    ],
    "v4AssignMode": "zt",
    "private": false
  }' \
  http://localhost:9993/controller/network/5e7a1f9226590243





//授权
curl -X POST -H "X-ZT1-Auth: berd8i2eshrlxlp5jg4txpoj" \
  -H "Content-Type: application/json" \
  -d '{"authorized": true}' \
  http://localhost:9993/controller/network/3d939c887b574d50/member/d015cf2b2e
